SPECIAL SURFACE ALUMINIUM HONEYCOMB PANEL

HPL AHP:

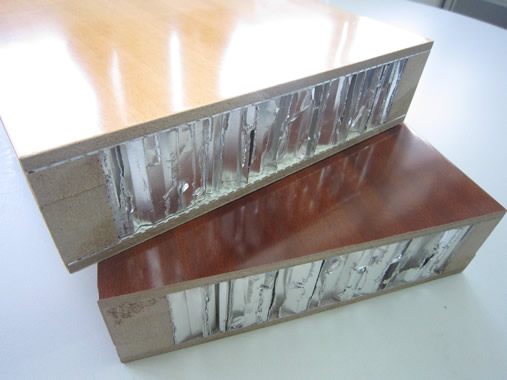

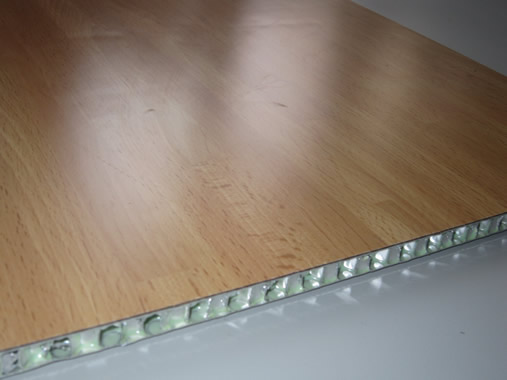

hpl ahp Maxbond HPL AHP has aluminium laminated with decorative HPL (High Pressure Laminate) sheet as covering in front and /or rear. Normally High pressure laminate (Abet Laminati or Formica) will be cold laminated to the aluminium coil before making the honeycomb panel. The Laminated facings are bonded to the aluminium honeycomb using special structural adhesives. The panel is available both single side and double side laminate also.

The HPL is available with different colors and finishes such as solid and metallic colors, wood grain, marble grain. For more details, please contact us freely.

Major Application Areas:

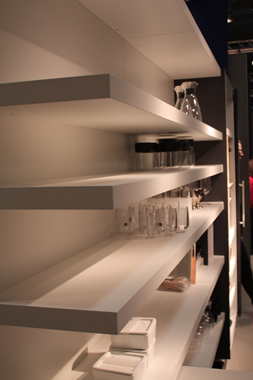

  1. Architectural: Interior Decoration / Ceiling / Partitions / Clean-room Walls etc.

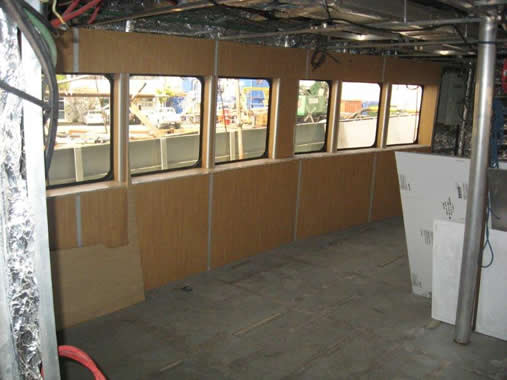

  2. Transport: High Performance Yachts/ Rail wagons/ Caravans etc.

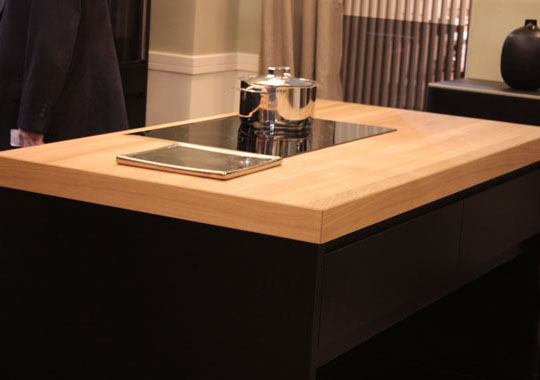

  3. Furniture Manufacturing: Tabletops / Office Furniture /Cabinets etc.

Top HPL:

  • Thickness: From 0.6 to 4 mm
  • Other thicknesses on request
  • Colors and finishes request

Alu core:

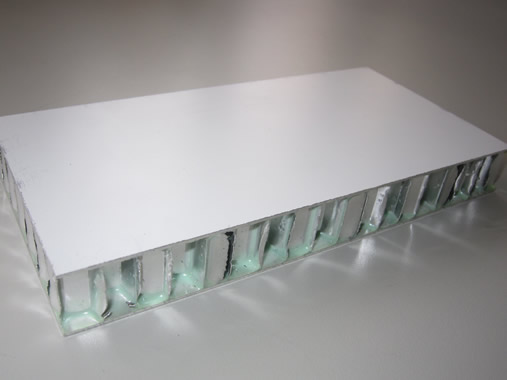

  • Aluminium honeycomb with hexagonal cells
  • Diameter: Ø1/4, Ø3/8, Ø3/4
  • Foil thickness: From 50 to 70 microns

Bottom HPL:

  • Thickness: From 0.6 to 4 mm
  • Other thicknesses on request
  • Colors and finishes on request
